The street views that are shown in this project were need­ed for a restora­tion project I have draw them over the orthopho­to that I cre­at­ed with the pho­togram­me­try method.

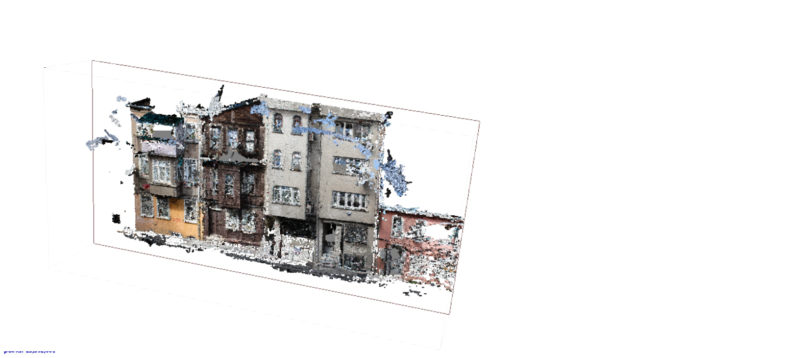

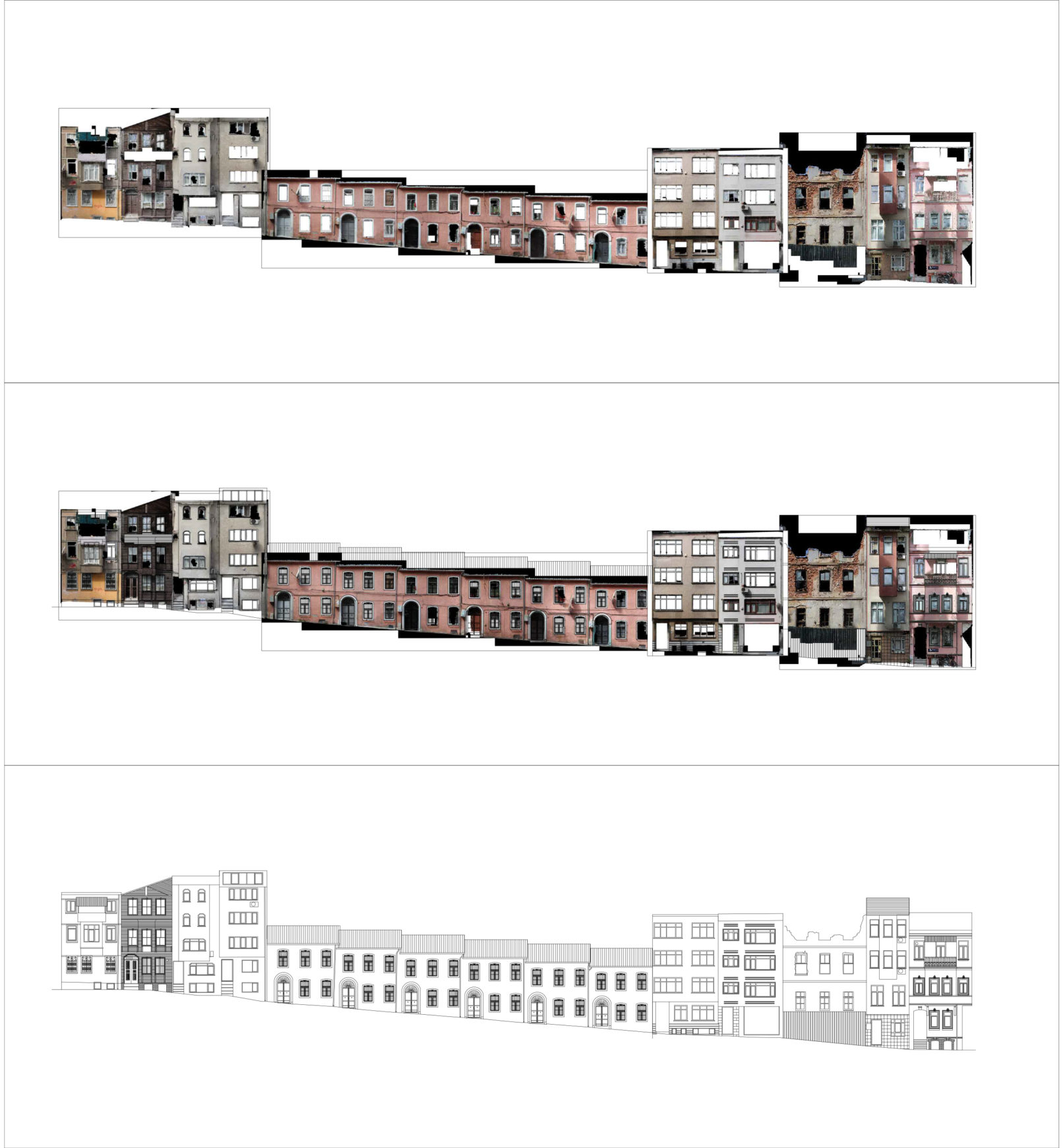

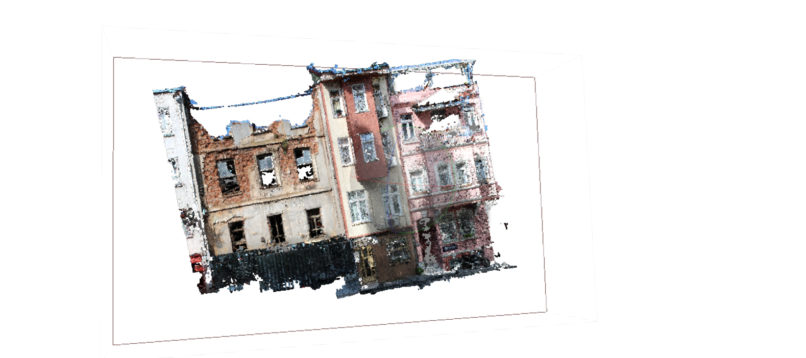

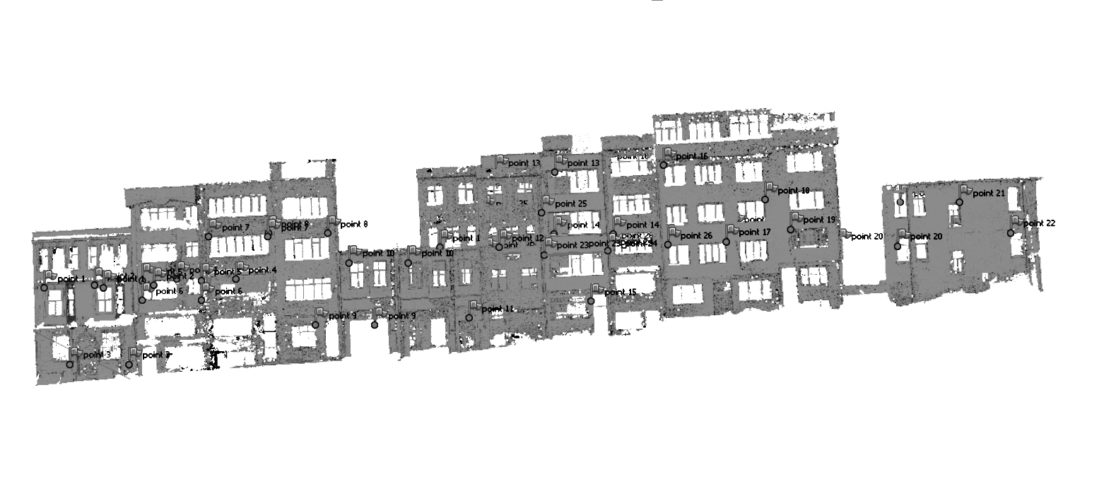

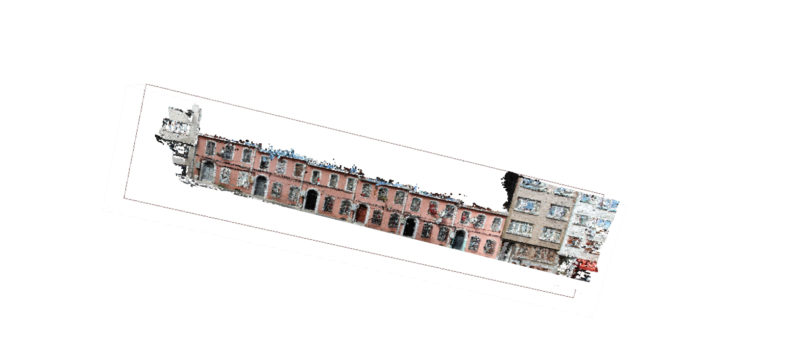

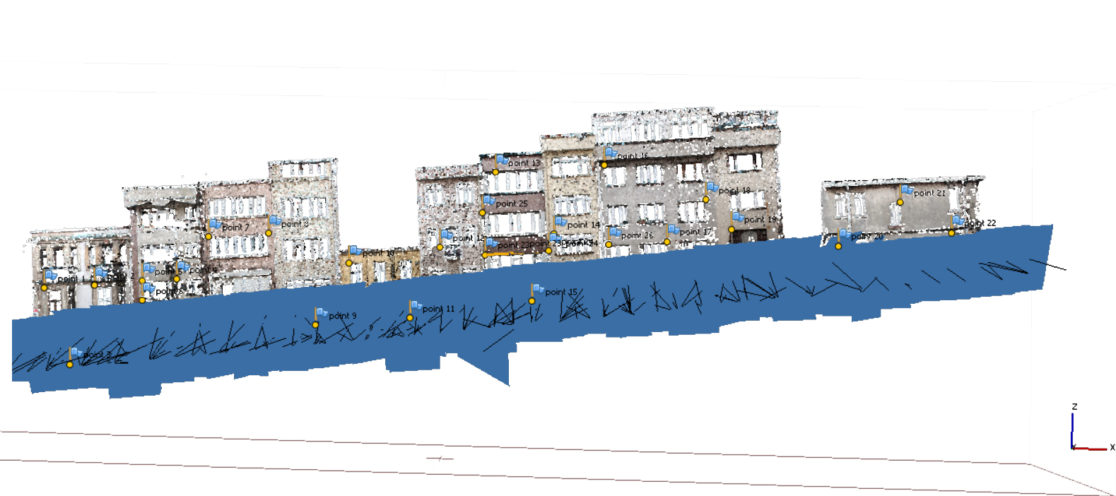

With this tech­nol­o­gy it is pos­si­ble to cre­ate the mod­el of the whole street as in the exam­ple 2, or they can be cre­at­ed in dif­fer­ent chunks as shown in the exam­ple 1.  After cre­at­ing the mod­el of the street with the help of pho­to­graph­ic cap­tur­ings it is need­ed to be scale the project. And have the scaled ortho­mo­sa­ic image.

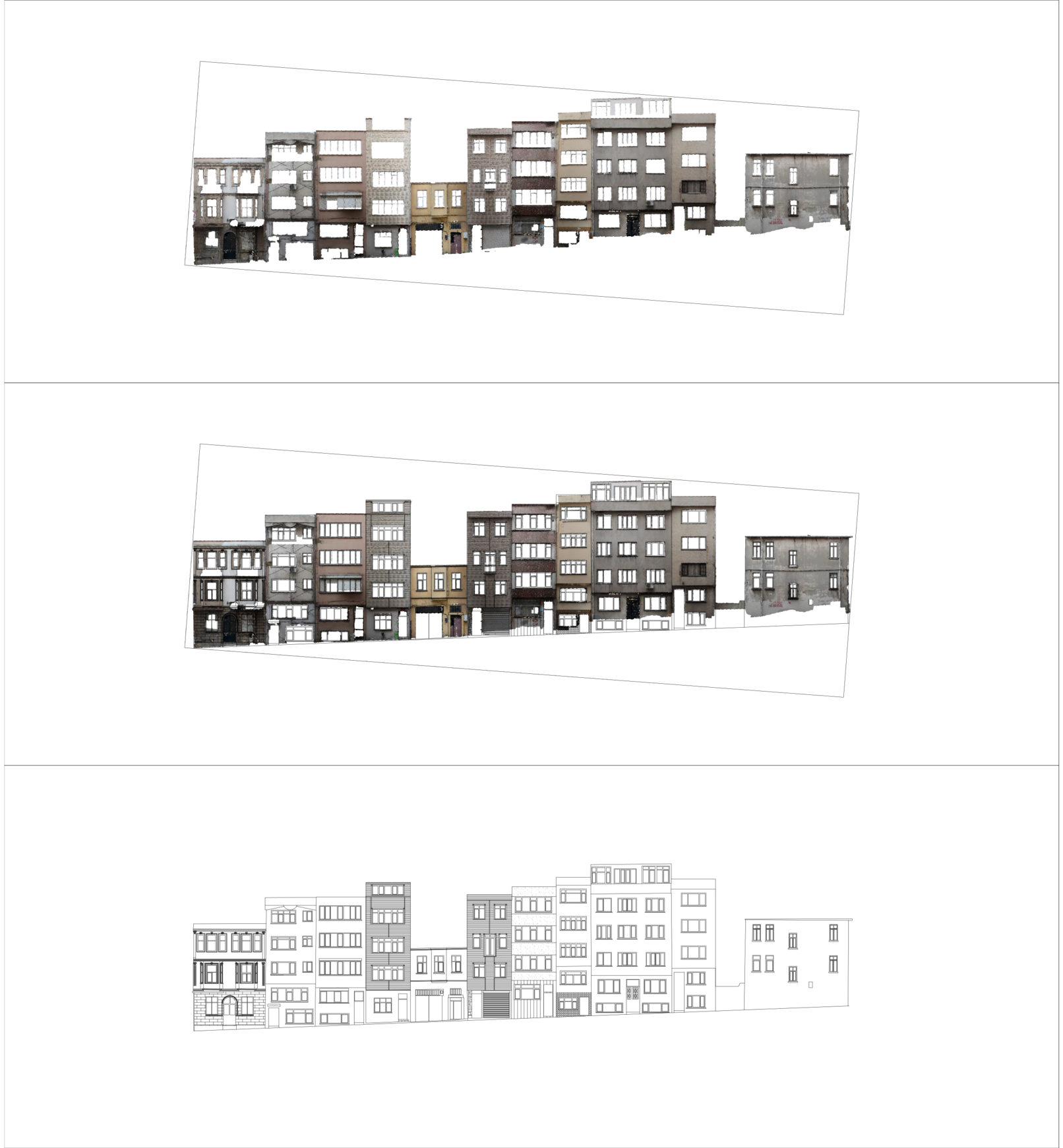

With this image it is very easy to cre­ate the intend­ed CAD draw­ing or this project can be direct­ly used on the both for detailed restora­tion work and easy archi­tec­tur­al main­tain­ing jobs. Since the image that is obtained already in scale there is actu­al­ly no need to be redraw the file over the pho­to on the CAD envi­ron­ment. But in this case it was nec­es­sary in order to deliv­ery the project to the coun­cil.

The final orthopho­to on these images are unfor­tu­nate­ly has blank spaces due to cap­tur­ing of the images on the upper floors were impos­si­ble at the time.
